PRODUCT DETAIL

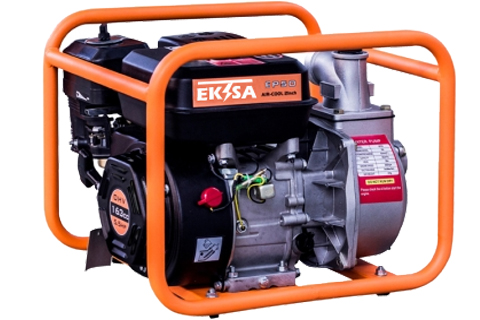

EP series petrol engine water pumps, with lower fuel consumption and high reliability. The water pumps with quick-starting,stable-running, little vibration, low noise, light weight, small volume and compact structure, Gensets can be suitable for areas on mining, factory, engaging in construction and army as movable as movable power or electric power in the ship, camping guesthouse a business as standby power.
| Model | EP50 | EP80 | EP100 |
|---|---|---|---|
| Type | 2’inch Clarified water pump | 2’inch Clarified water pump | 2’inch Clarified water pump |
| Suction (mm) | 50 ( 2’inch) | 80 ( 3’inch) | 100 ( 4’inch) |
| Rated Capacity (m3/h) | 35 | 60 | 96 |
| Discharge Port Dia (mm) | 50 | 80 | 100 |
| Self-Priming Time (s/4m) | 70 | 120 | 180 |
| Max.Head (m) | 28 | 28 | 28 |
| Max.Suction Head (m) | 8 | 8 | 8 |
| Model | EP168 | EP170 | EP177 |
| Type | 4-stroke, single cylinder with Air-cooled gasoline engine | ||
| Bore x Stroke(mm) | 68×45 | 68×45 | 77×58 |
| Displacement(ml) | 163 | 163 | 270 |
| Max.output(HP/rpm) | 5.5/3600 | 5.5/3600 | 9.0/3600 |
| Fuel | Unleaded Gasoline | Unleaded Gasoline | Unleaded Gasoline |
| Fuel Tank Capactity (L) | 3.6 | 3.6 | 6.5 |
| Fuel consumption(g/hp.h) | ≤295 | ≤295 | ≤295 |
| Lubrication Oil | SAE10W/30 | SAE10W/30 | SAE10W/30 |
| Lubrication Oil Capacity(L) | 0.6 | 0.6 | 1.1 |
| Operating Noise Level(7m)dB(A) | 78 | 78 | 96 |
| Dimensions LxWxH(mm) | 487x385x389 | 527x395x429 | 627x470x527 |
| Net Weihgt(kg) | 25 | 28 | 49 |
| Gross Weight(kg) | 26 | 30 | 52 |
| 20/40FT Load Qty | 438/876 | 320/816 | 180/450 |
